Big Horn- Standard Configuration

Color
Mounting Option
Quantity

Description

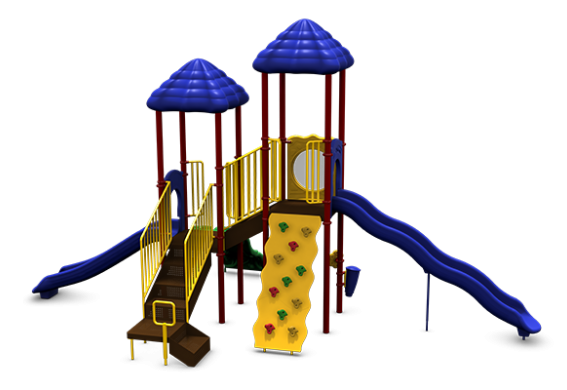

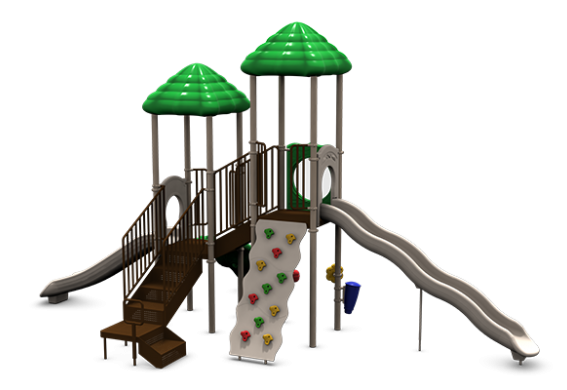

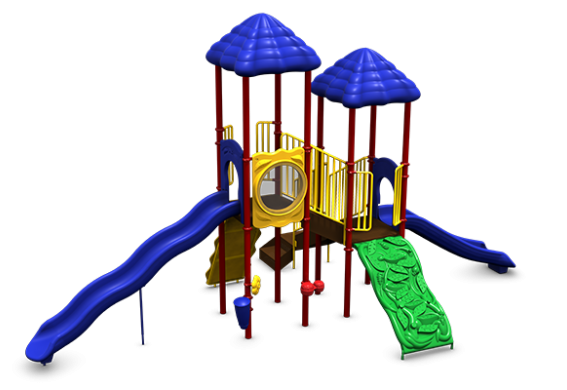

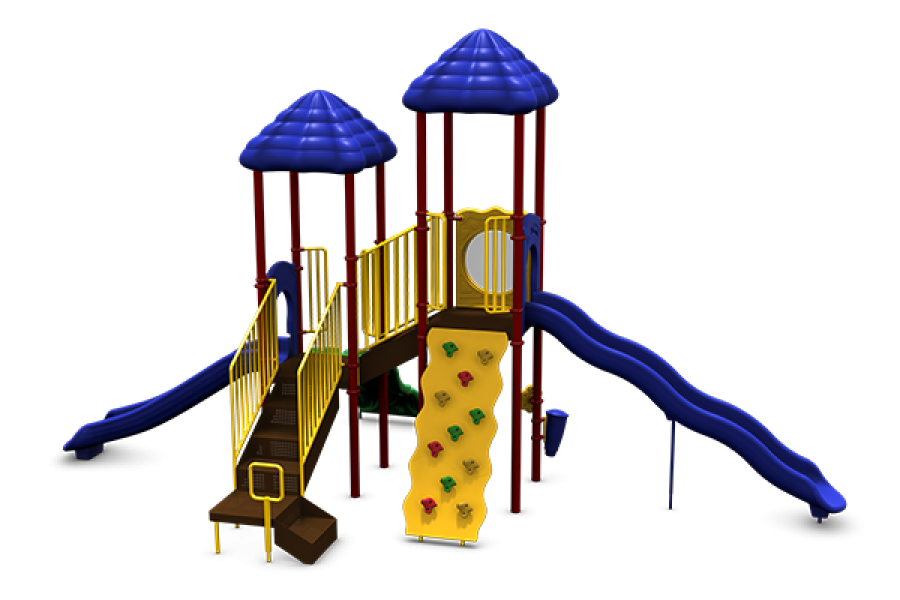

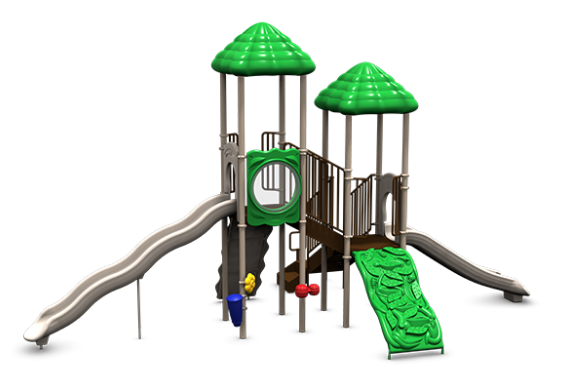

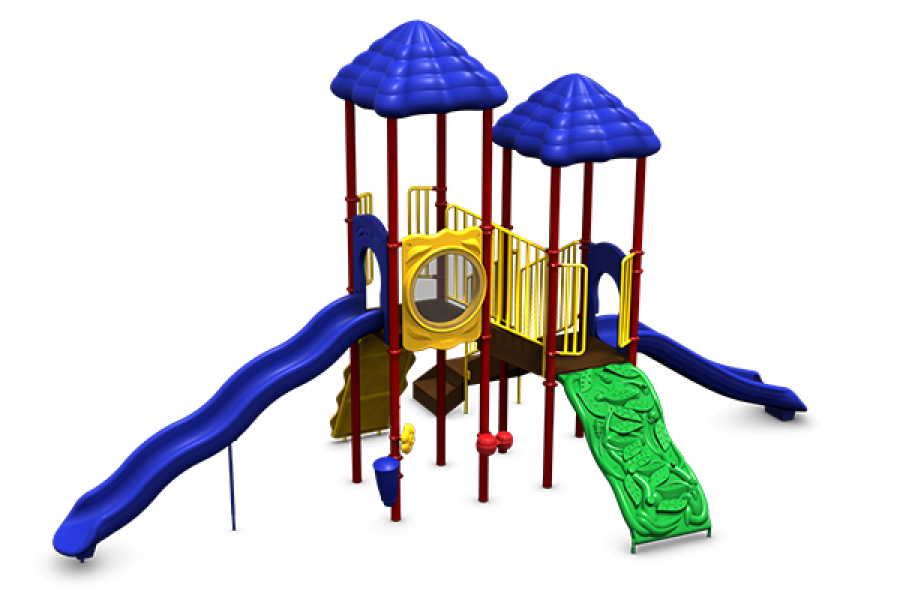

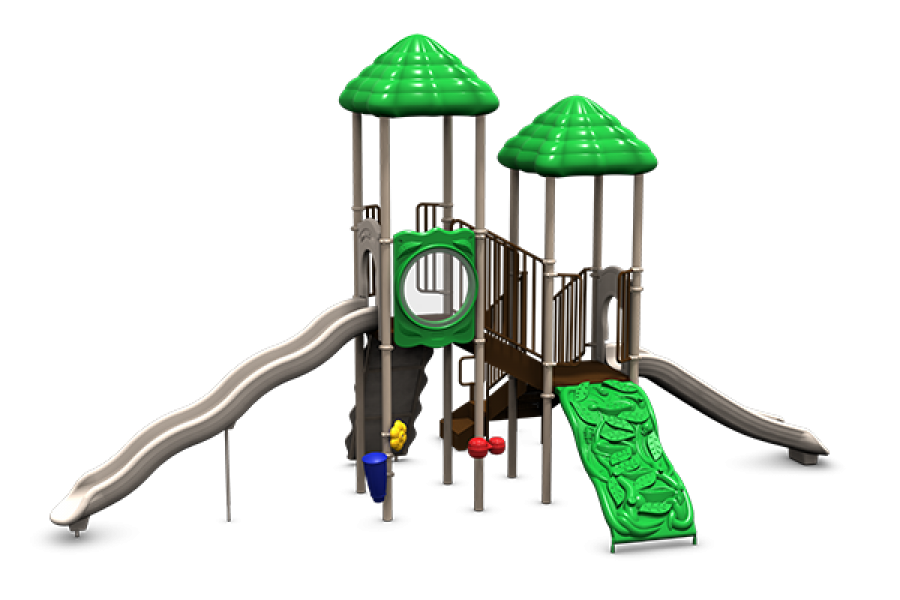

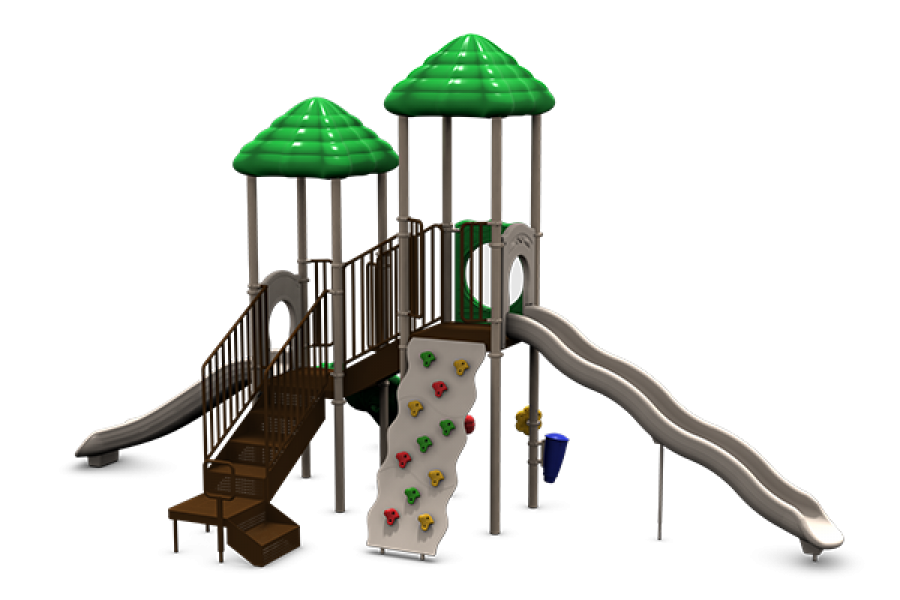

The Bighorn provides a diverse range of play experiences. Two climbers challenge children to use both upper and lower body strength while simultaneously developing motor skills. Two slides complement the climbers, offering motion-sensory development. Additionally the ground-level Bass and Bongo Drums and Rain Wheel encourage children of all abilities to make their own music. Ideal for play spaces where a smaller footprint is necessary, and an additional space saver configuration offers even more flexibility.

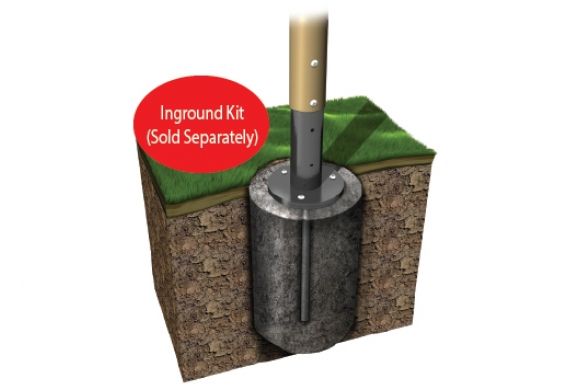

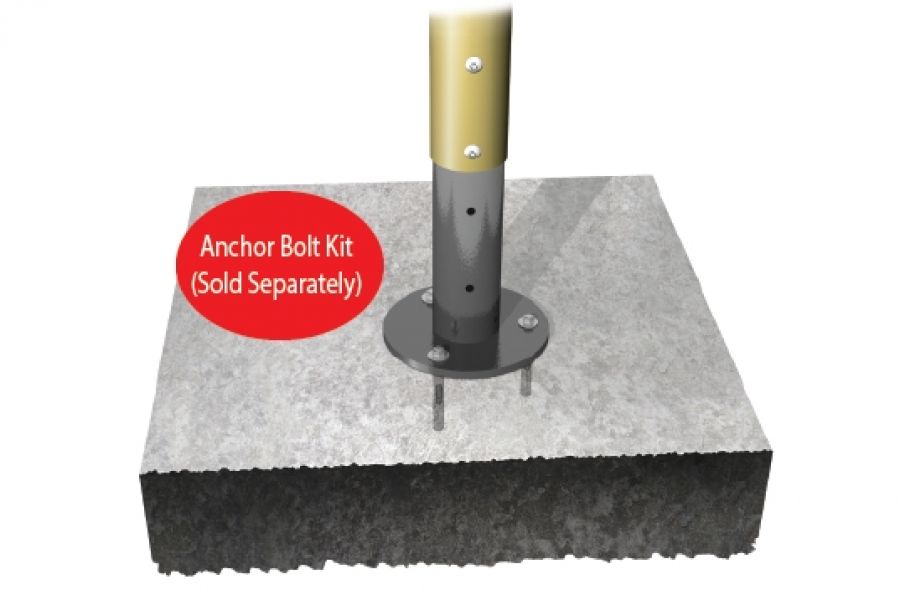

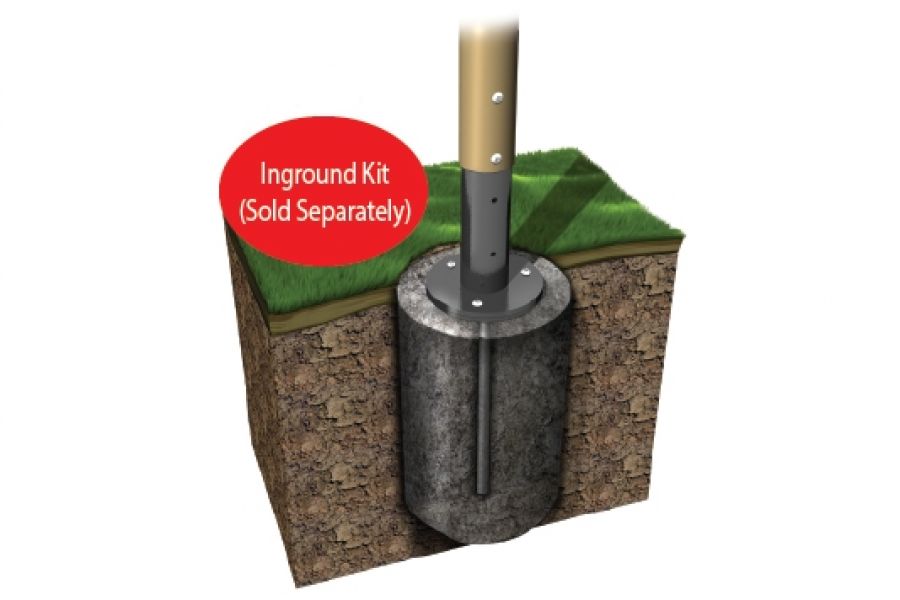

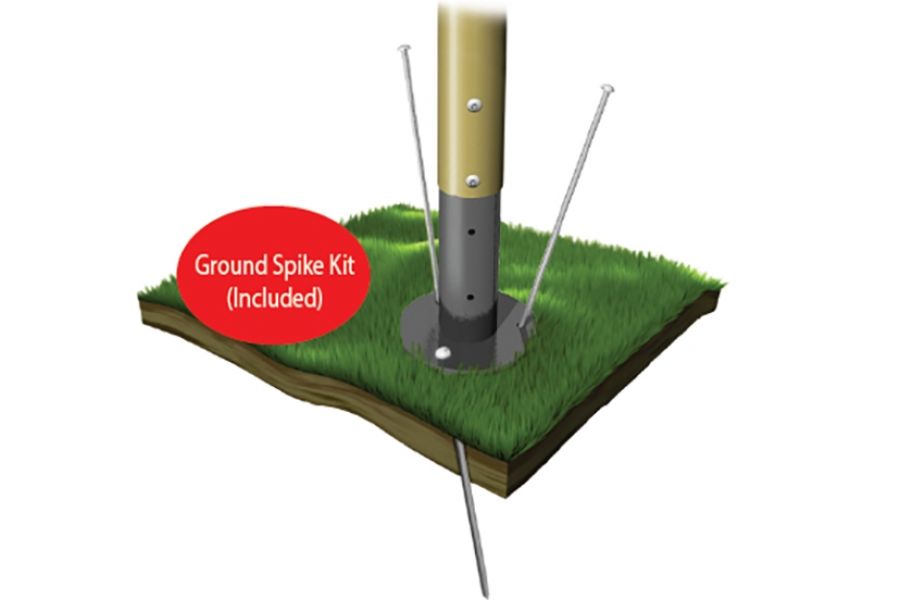

The Bighorn meets ADA guidelines and is commercially compliant with ASTM & CSPC. A ground spike surface mount is included with the structure, but an anchor bolt surface mount or in-ground mounting kit can be purchased separately. The posts are 13-gauge galvanized steel tube and powdercoated. The plastics are heavy-duty rotomolded & blow molded components. Critical fall height is 6’.

The Bighorn is the perfect easy-install, commercially compliant and budget-conscious solution for daycares, churches and apartment complexes! Assembly required. Truck delivery.

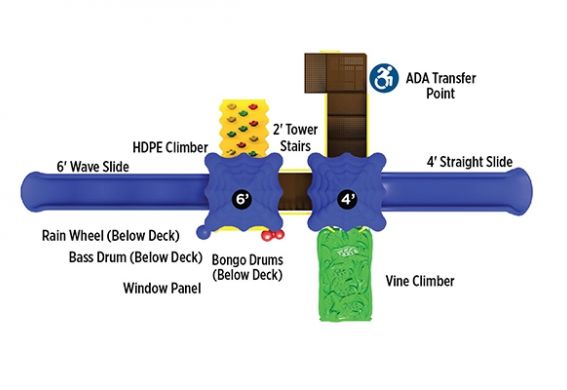

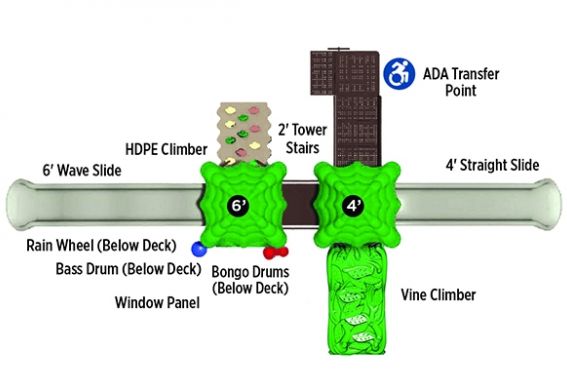

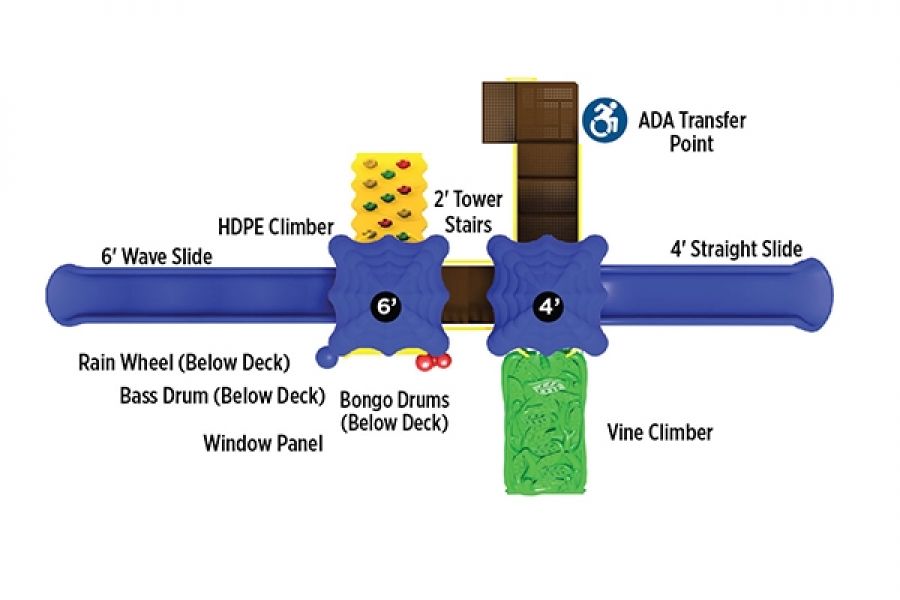

Features

  • Window Panel
  • Bass Drum (Below Deck)
  • Rain Wheel (Below Deck)
  • 4' Straight Slide
  • Rocky Mountain Climber
  • Bongo Drums (Below Deck)
  • 6' Wave Slide
  • Deluxe Climbing Wall
  • Capacity: 15-20
  • Structure Installed Height: 15' 1"

Specifications

  • Part Number
    UPLAY-008
  • Age
    5-12
  • Capacity
    13-25
  • Use Zone
    38' 11" x 26' 0"
  • Weight
    1720 lbs
  • Minimum Timbers
    36
  • EWF Cubic Yards
    64
  • Meets ADA
    Yes
